SOLID STATE RADAR SYSTEM

Manta NEO solid state X band radar ensures extremely high reliability and low through life costs as there is no magnetron to be replaced. Furthermore, using solid state technology enables superior detection performance especially in poor weather conditions where traditional radar technology can make target detection difficult.

  • Commercial retrofit and new buildings
  • Operates on an integrated display, incorporating cutting-edge software functionality
  • Easy integration into any existing bridge setup
  • Intuitive key tooltips, common dialogue and controls throughout the system, allowing to focus on critical navigation tasks without distraction

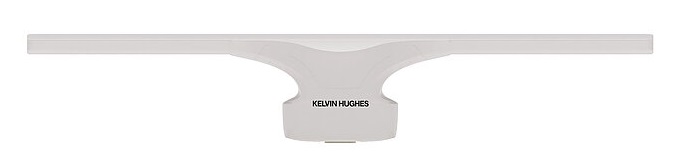

Radar transciever with antenna

▪ 110 W Solid State Tranceiver

▪ 1.9 m Low Profile Antenna

▪ ARPA for Target Tracking and Collision Avoidance

▪ Light Weight Turning Unit, Including Antenna (28 kg)

▪ Dedicated Radar Network

▪ Up to 90 m Ethernet Between Each Router or Fiber Optic

Multi Function Display

▪ Easy to Install Panel PC

▪ SSD Hard Drive

▪ Easy to Add Bridgewing Monitors, One Cable Only

▪ Flush Mount, Desktop or Deckstand options

▪ All Sensors are Connected via Ethernet

▪ Output for VDR

▪ Chart Radar option

▪ Key to Lock USB Input

▪ Well Known and Easy to Operate GUI (3 Button)

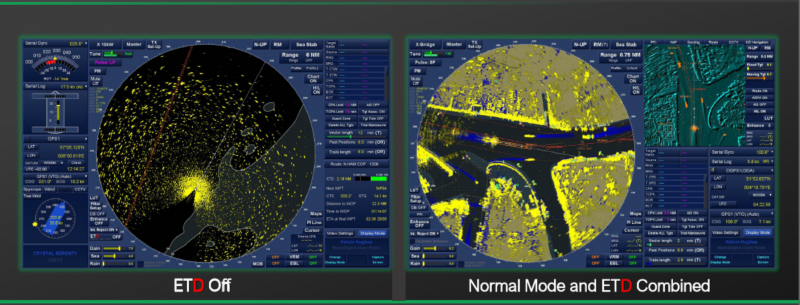

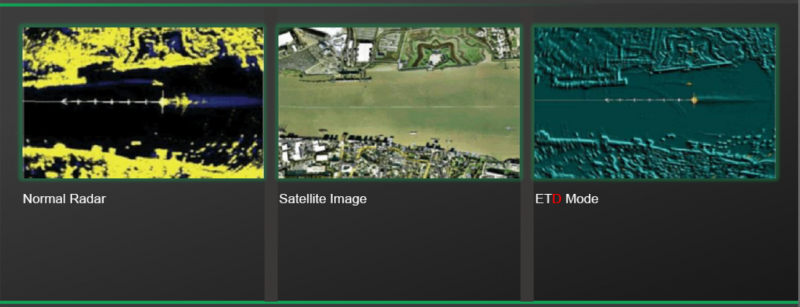

ETD - Enhanced Target Detection functionality

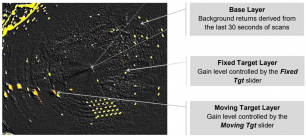

Enhanced Target Detection uses an advanced processing technique to produce a composite display consisting of three layers. The layers consist of a base layer, an overlaid fixed target layer and a moving target layer.

The Benefits of ETD:

  • Buoys and other small fluctuating (time-varying) targets are more positively detected.
  • Moving targets can be more rapidly identified.
  • Improved situational awareness in the presence of sea-ice, rain and sea clutter
